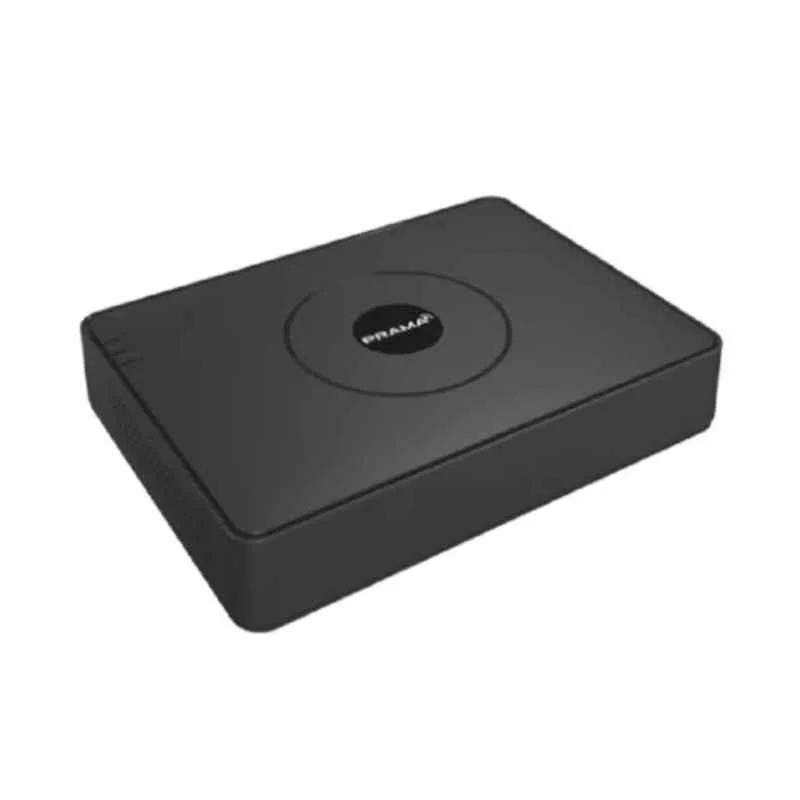

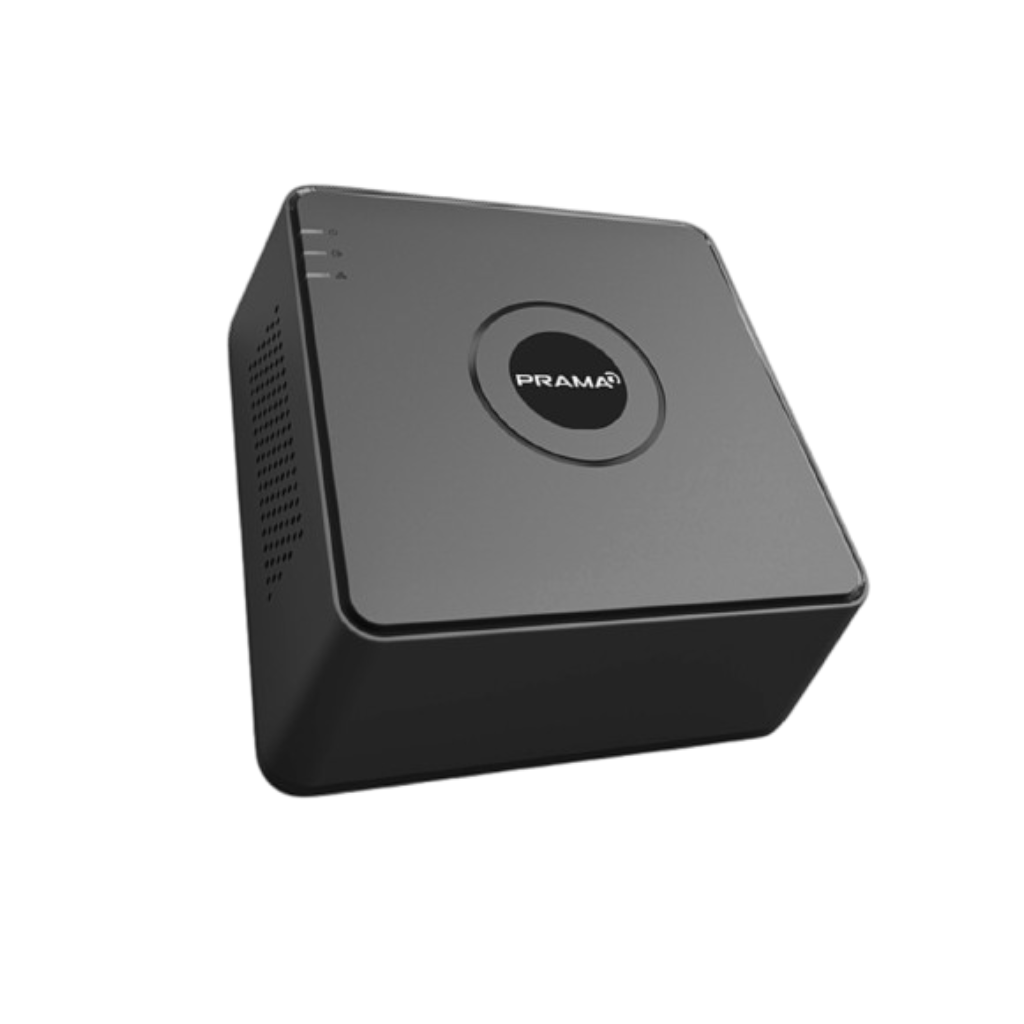

Prama 4ch HDTVI DVR-Model PT-DR1A04G-K1, A compact and high-capable digital video recorder that is made for small-scale surveillance. It supports all types of CCTV cameras in 2.4MP, including AHD, TVI, CVI and CVBS formats, which makes it a versatile solution for various security set ups.
Equipped with a reliable network interface and a self-impaired ethernet interface, this 4ch HDTVI PT-DR1A04G-K1 DVR ensures smooth view, playback and configuration. It is designed to provide real-time HD video recording and it is ideal for home, small shops and office environment.

• Model: PT-DR1A04G-K1
• PRAMA 4CH HDTVI DVR – Supports 4 analog camera inputs
• Supports all types of CCTV cameras within 2.4MP
• Compatible with AHD/TVI/CVI/CVBS camera formats
• Network interface for remote access and live viewing
• Self-adaptive Ethernet interface for plug-and-play connectivity
• Compact and durable design – ideal for small security installations
• H.264+ compression for optimized storage
• Core Features:
  Analog & IP Support: Handles 4 analog channels (BNC) supporting TVI/AHD/CVI/CVBS at up to 1080p, plus 1 IP camera channel expandable up to 5 channels (1.3 MP max)
  Video Compression: Efficient encoding with H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 formats
• Recording & Playback:
  Resolution: Records up to 1080p full HD on analog channels; supports “1080p Lite” when enabled
  Playback: Synchronized playback on all 4 channels .
  Smart Search: Quickly locate motion events or video fragments
• Connectivity & Interfaces:
  HDMI & VGA Outputs: Single output supporting up to 1080p/60 Hz (1920×1080), plus legacy resolutions
  Network: RJ45 10/100 self-adaptive Ethernet for remote access; supports TCP/IP, DHCP, DDNS, NTP, SMTP, UPnP, iSCSI, HTTPS
  USB Ports: Two USB 2.0 ports (rear panel) for backup or mouse control.
• Storage & Power:
  HDD Support: One SATA port – supports up to 4 TB–6 TB drives depending on source .
  Power: Accepts 12 V DC; low power draw of ≈ 8 W (without HDD)
  Environment: Rated for -10 °C to +55 °C, 10–90% humidity (non-condensing)
  Form Factor: Compact dimensions: ~200 × 200 × 45 mm, weighing ~0.8 kg
