About this item

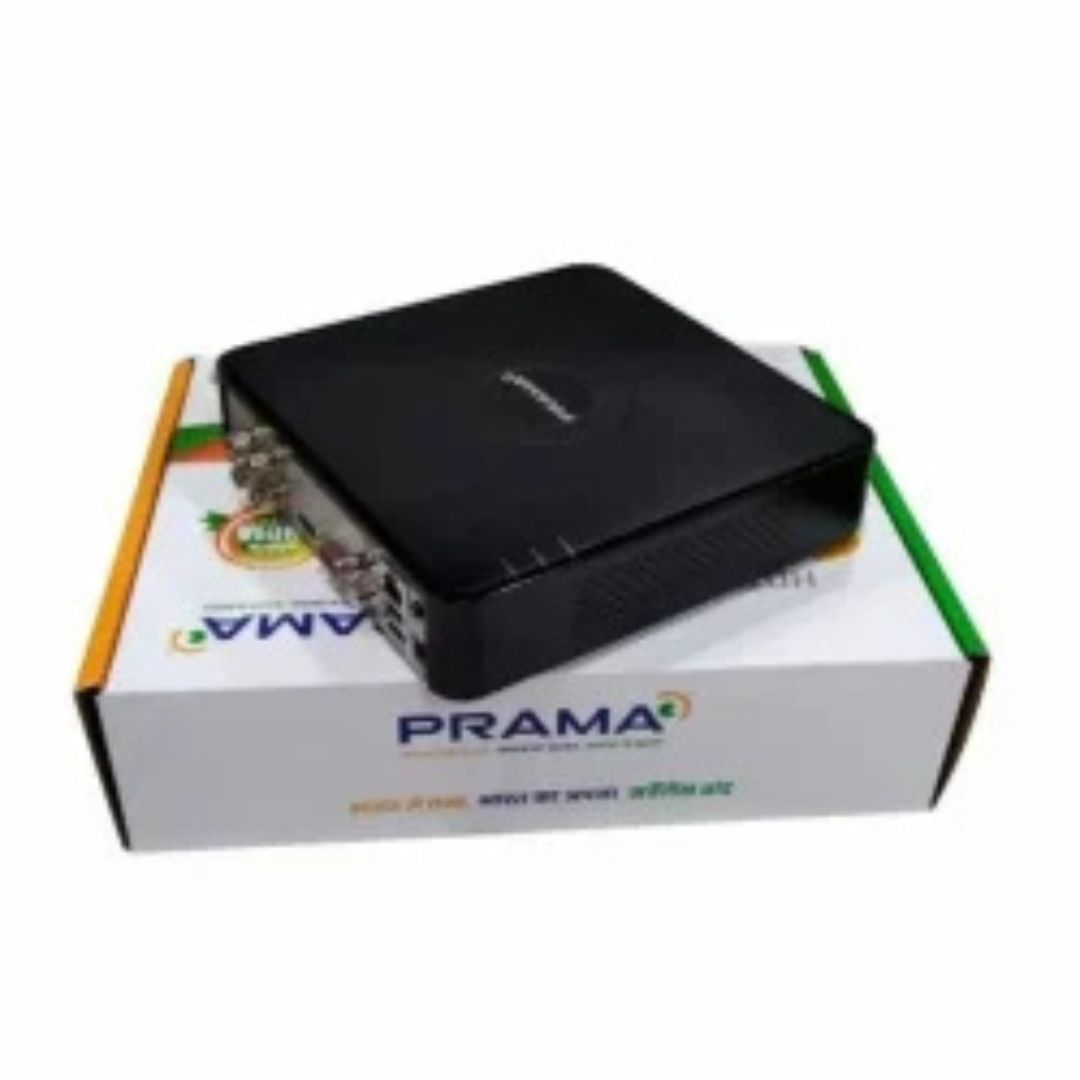

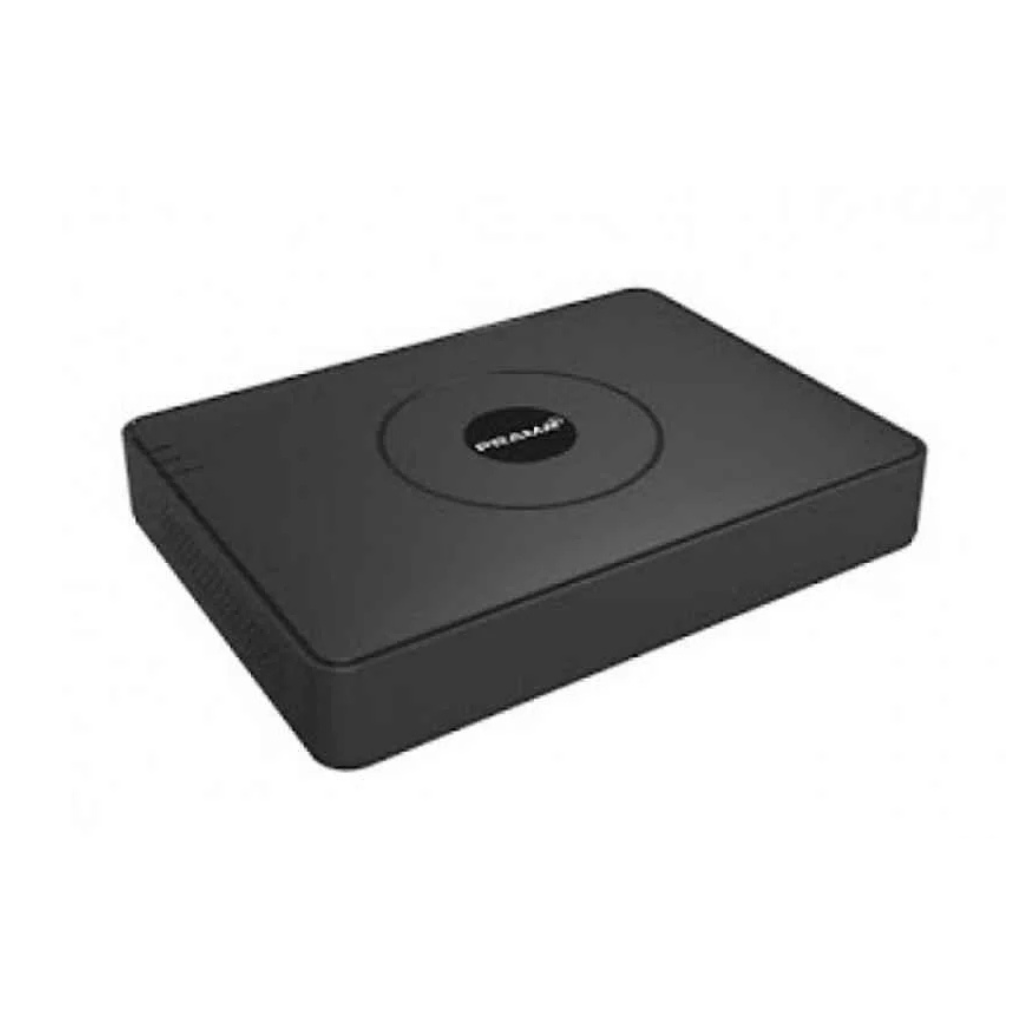

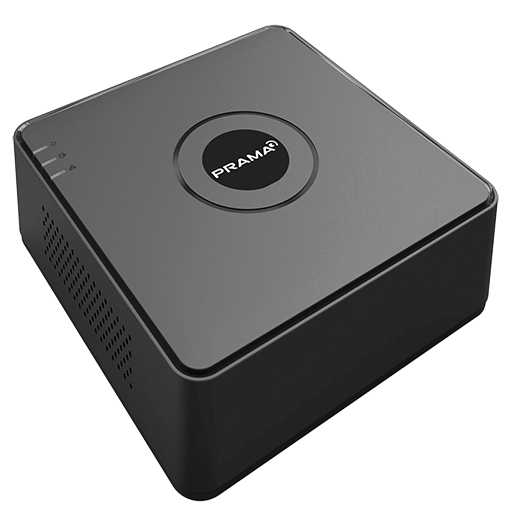

Prama 8ch DVR PT-DR1A08G-K1 is a strong digital video recorder that is designed to improve your security system with continuous performance. HDMI/VGA output is equipped with 1 CH, it ensures clear and reliable display for real time observation. This DVR is extremely versatile because it can support all types of CCTV cameras in 2.4MP, which makes it a perfect choice for both residential and commercial setups. With simple connection and user friendly operation, Prama 8ch DVR PT-DR1A08G-K1 offers reliable recording, playback and storage for full surveillance solution.

KEY FEATURES :

• Feature: PT‑DR1A08G‑K1 Highlights
• Channels: 8 analog+2 (up to 10) IP
• Recording: Up to Full HD with H.265 & H.264
• Outputs: HDMI/VGA (1080p/60 Hz)
• Storage: 1× SATA up to 6 TB
• Remote Connections: Up to 64 clients
• Build & Power: Fanless, 200×200×45 mm, 17 W
• Operating Range: –10 °C to +55 °C
• Bandwidth: 64-72 Mbps total
• Connectivity Technology: Ethernet
• Compatible Devices: Camera
• Brand: PRAMA
• Memory Storage Capacity: 6 TB
• Hard Disk Size: 6 TB

Frame Rates :

• Standard streams: CIF to 720p/1080p Lite
• Sub treams: lower resolutions like CIF or QVGA

Build & Power :

• Power: 12 V DC, 17 W (without HDD)
• Operating Conditions: –10 °C to +55 °C; 10%–90% RH (non condensing)
• Dimensions: Approx. 200×200×45 mm, weight 0.8–1.1 kg

Compatibility & Use Cases :

• Works seamlessly with analog CCTV (up to 1080p) and IP cameras (up to 1.3 MP), making it ideal for hybrid systems
• H.265 Pro+ reduces bandwidth/storage usage while maintaining video quality
• Ideal for homes, offices, retail, small to medium business surveillance setups
